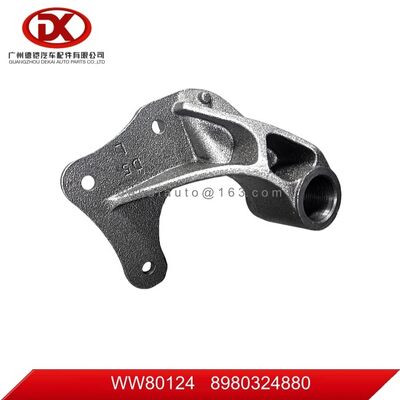

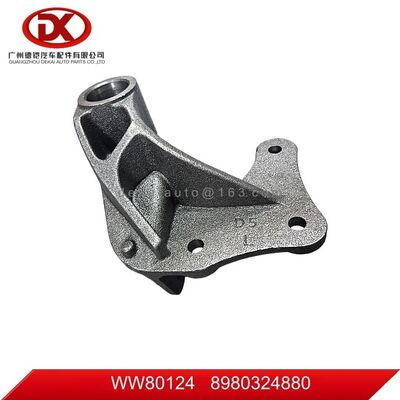

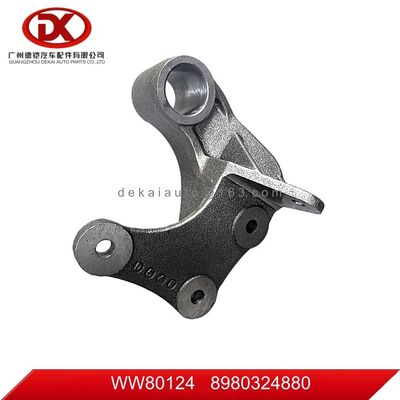

Suitable for ISUZU NPR/NQR/NMR/700P Rear Spring Bracket 8980324880 8 98032488 0

Suitable for ISUZU NPR/NQR/NMR/700P Rear Spring Bracket 8980324880 8 98032488 0

WW80124  8980324880 8 98032488 0  Rear Spring Bracke ISUZU NPR/NQR/NMR/700P

More Parts:

The function of the Rear Spring Bracke

1.Connect the frame and the axle

Fixed on the frame at one end and connected to the eye of the leaf spring via a spring pin at the other, it transfers the weight of the vehicle body and load to the axle and wheels, while transmitting driving and braking forces from the wheels back to the frame.

2.Fix and position the leaf spring

Strictly restricts the installation position and movement trajectory of the leaf spring, preventing lateral offset and front-rear movement during bumps. The front bracket usually acts as a fixed hinge pivot, while the rear end cooperates with a movable shackle to allow spring expansion and deformation.

3.Bear load and transmit force

Withstands all alternating loads from vehicle weight, cargo and road impact, disperses stress and avoids local overloading and cracking of the frame.

4.Guide and stabilize the vehicle

Controls the vertical movement direction of the wheels together with the leaf spring, maintains wheel alignment angles, reduces body roll, swaying and abnormal noise, and improves driving stability.

The working principle of the Rear Spring Bracke

Road bumps cause the wheels to bounce upward, making the leaf spring bend and deform to absorb shocks. The bracket firmly fixes one end of the spring and allows the other end to stretch freely with the shackle, ensuring vertical stress only. Impact energy is gradually buffered before being transmitted to the body for a smoother ride.

Structure of the Alternator.
Alternators are usually made up of components such as stators, rotors, covers and bearings. The stator consists of a stator core, a wire bale winding, a base, and other structural parts that hold these parts in place. The rotor consists of rotor core (or pole, magnetic choke) windings, guard rings, center rings, slip rings, fans and shafts. The stator and rotor of the generator are assembled by bearings and end covers, so that the rotor can rotate in the stator and do the movement of cutting magnetic field lines, thereby generating an induced potential, which is led out by the terminals and connected to the loop, and a current is generated.

Auto parts suitable for Japanese Trucks : CYZ51K 6WF1 / FVR34 6HK1 / FSR33 6HH1 / NPR75 4HK1 / NLR85 4JJ1 / NPR71 4HG1 / NPR66 4HF1 / QKR55 4JB1 / NKR55 4JB1 / DMAX / HINO 700/500 / 300 E13C /J08/J05 / N04C etc.
